Product information

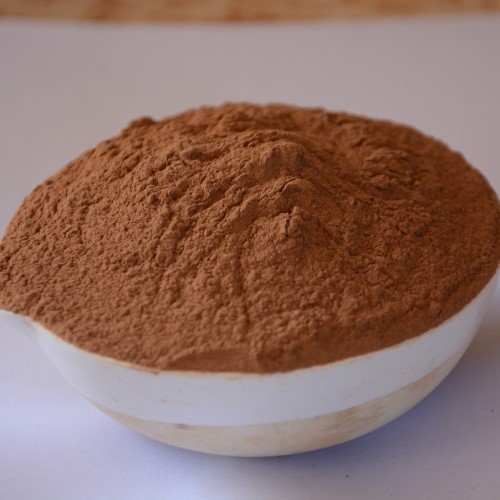

M-PILL 25 and M-PILL 30 are high quality sodium activated bentonite designed to meet the requirements of civil engineering applications, especially for underground works where groundwater pressure is high.
Use:
- Civil Engineering
- Board Pilling Construction
Specification of Construction Grade Bentonite
| Properties | Unit | M-PILL 25 | M-PILL 30 |
|---|---|---|---|
| PH | - | 9-10 | 9-10 |
| Moisture | %WT | 12-14 | 12-14 |
| Geling Time | SEC. | 70 Max | 60 Max |
| Liquid Limit | % | 300 Min | 400-420 Min |
| Free Swelling Value | CC | 25 Min | 30 Min |
| MBA Value | MG/GM | 300 - 320 Min | 370 - 380 Min |
| Mesh Size (Passing Through 200 B.S.S) | %WT | 75% Min | 75-85% Min |
| Green Compression Strength | PSI | 12-13 | 12-13 Min |
