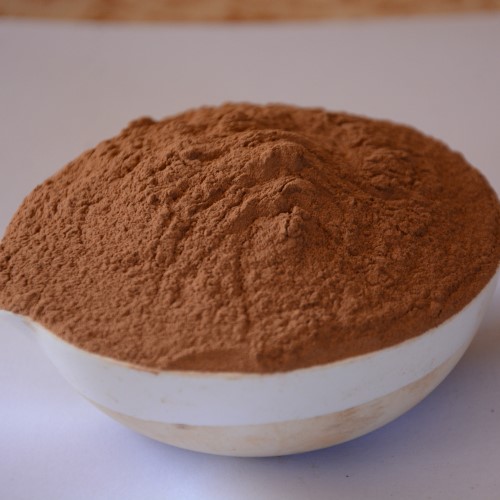

Product information
All metal cast iron, steel & malleable iron foundries almost using bentonite with cost efficient, kutch region is famous for very good sodium bentonite for casting industries.
Use:-
- C.I. Casting
- Metal Casting
- Non Alloy Metal Casting
Specification of Foundry Grade Bentonite
| Properties | Unit | M-24/25 | M-28/30 | M-32 | M-34 |
|---|---|---|---|---|---|
| PH | - | 9-10 | 9-10 | 9-10 | 9-10 |
| Moisture | %WT | 12-14 | 12-14 | 12-14 | 12-14 |
| Geling Time | SEC. | 70 Max | 60 Max | Instant | Instant |
| Geling Index | CC | 60 Min | 75 Min | 80 Min | 85 Min |
| Free Swelling Value | CC | 24-25 Min | 30 Min | 32 Min | 34-35 Min |
| MBA Value | MG/GM | 300-320 Min | 370-380 Min | 390-400 Min | 390-410 Min |
| Mesh Size (Passing Through 200 B.S.S) | %WT | 75% Min | 75-80% Min | 82% Min | 82-85% Min |
| Green Compression Strength | PSI | 12-13 | 12-13 Min | 12-13 | 13-14 |
| Wet Tensile Strength | 9m / Cm 2 | 28-29 | 29-31 | 32-34 | 34-35 |
